YCS 6558S Trinocular Microscope
The YCS 6558S is a trinocular stereo microscope for phone repair with 0.65x-5.8x zoom optics — 6.5x to 58x total magnification through high-eyepoint wide-angle 10x23 eyepieces — plus a CTV 0.5x camera port for live display and photo documentation, an adjustable LED ring light, and a collision-protection limiter. A YCS microscope from Mr. Yang's YCS repair tool line, ready for motherboard-level BGA and micro-soldering work.
Key Specifications
- Brand
- YCS
- Model
- YCS-6558S
- Type
- Trinocular stereo zoom microscope
- Zoom Range
- 0.65x – 5.8x (objective)
- Total Magnification
- 6.5x – 58x continuous (with 10x eyepieces)
- Eyepieces
- WF10X23 high-eyepoint wide-angle ×2, anti-reflective coated
- Camera Port
- CTV 0.5x adapter included
- Focus
- Coarse focus knob + eyepiece diopter fine adjustment
- Interpupillary Adjustment
- Flexible, ergonomic
- Collision Protection
- Limiter ring included
- Illumination

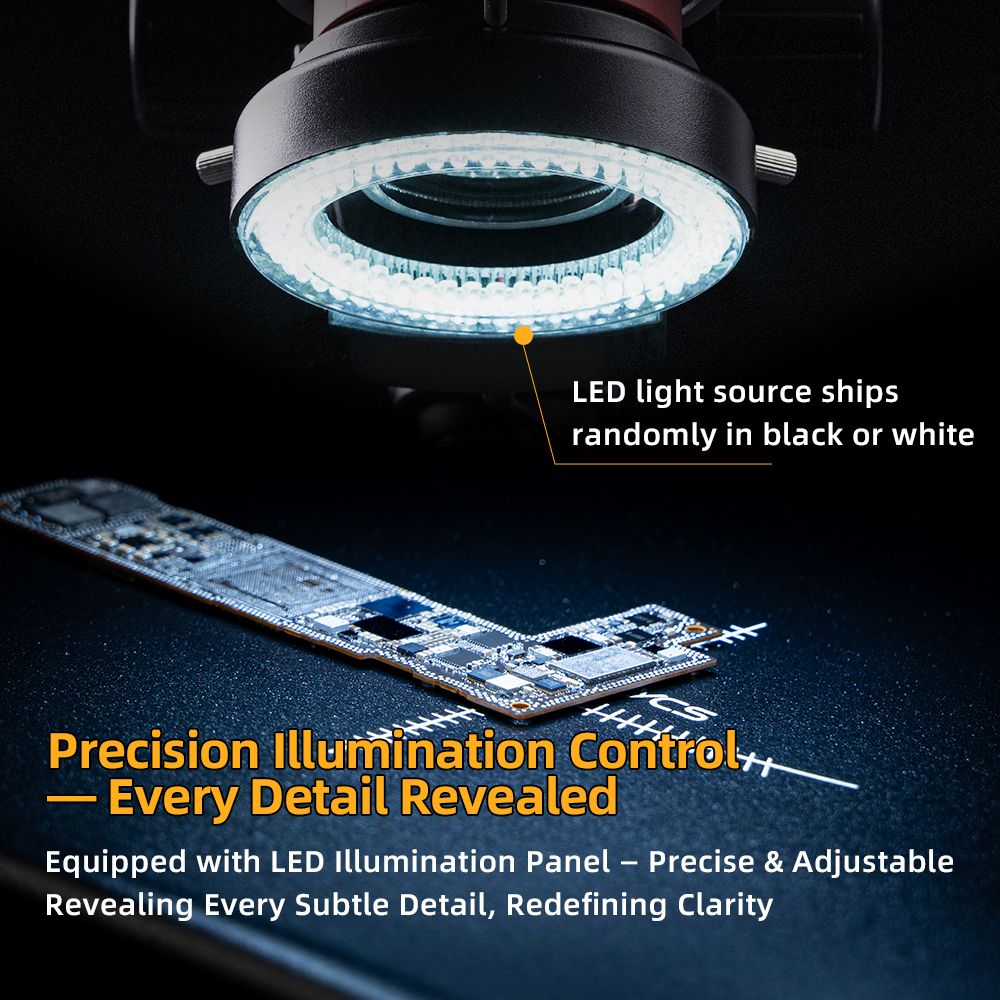

- Adjustable LED ring light plate (ships black or white at random)
- Base
- Metal plate with positioning scale, 380 × 260 mm
- Size

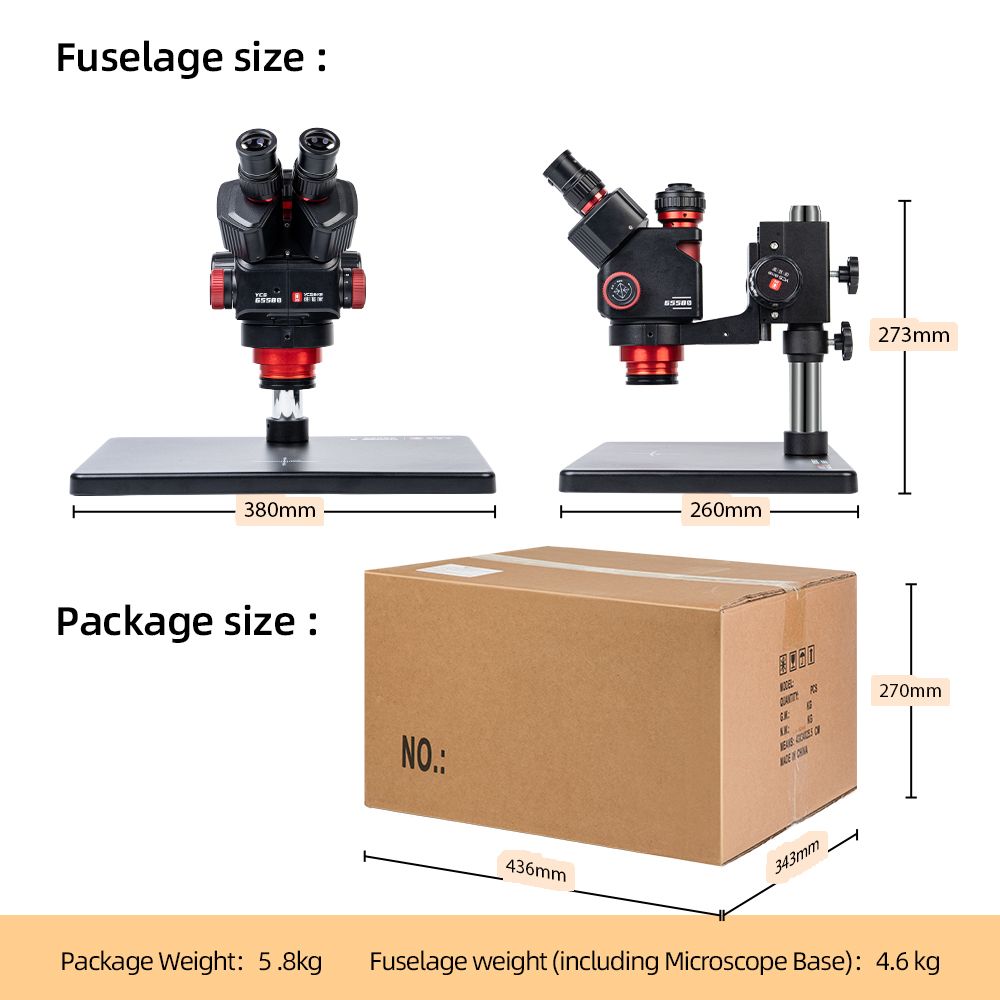

- 380 × 260 × 273 mm
- Weight
- 4.6 kg (including base)
- Package
- 436 × 343 × 270 mm; 5.8 kg
- In the Box

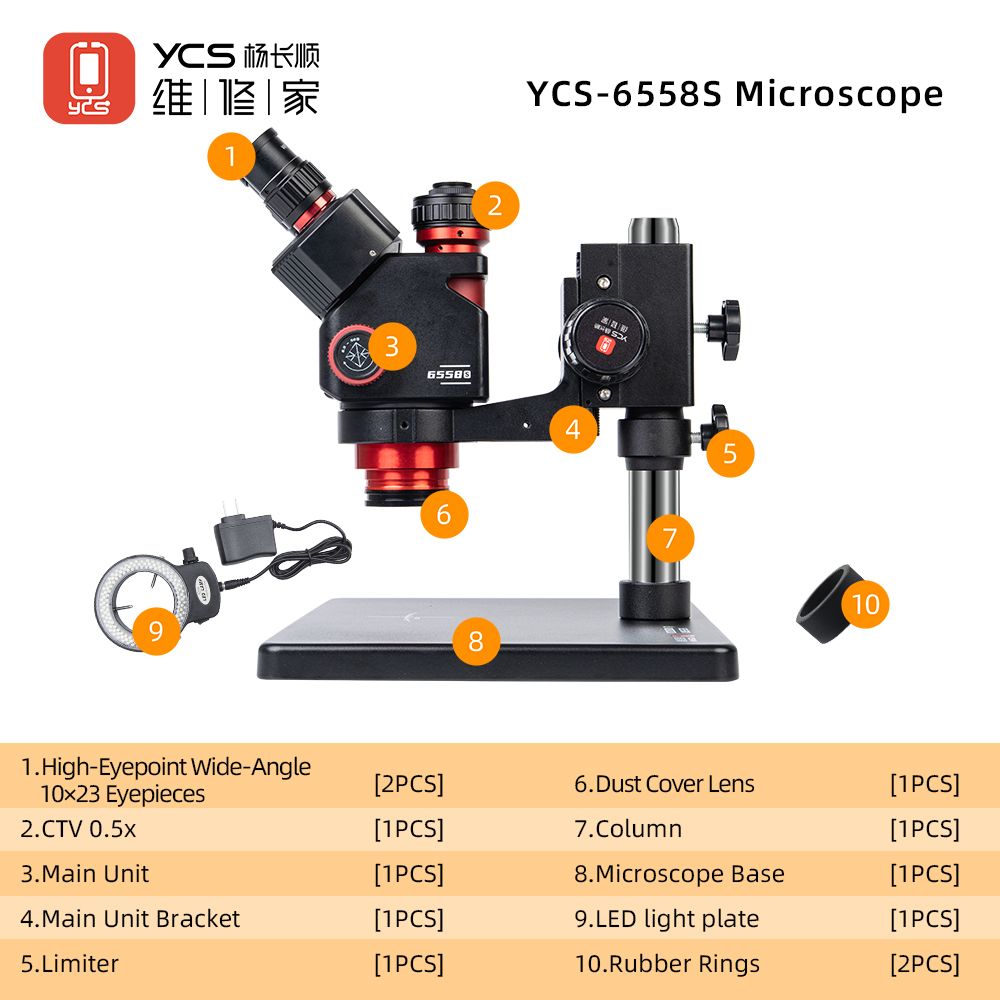

- Eyepieces ×2, CTV 0.5x ×1, main unit, bracket, limiter, dust cover lens, column, base, LED light plate, rubber rings ×2
Product Overview
Key Features
- True trinocular head — observe through both eyepieces while the CTV 0.5x port feeds a live view to a monitor or camera
- 6.5x–58x continuous zoom with a fine-tuning knob — precision-controlled magnification at your fingertips
- High-eyepoint wide-angle WF10X23 eyepieces with anti-reflective coating — wide field of view, eyeglass-friendly
- Eyepiece diopter fine adjustment plus interpupillary adjustment — both eyes see a sharp, comfortable image
- Limiter ring stops the head before it touches the board, protecting samples and optics
- Adjustable LED ring light wraps the work area in even, shadow-free illumination
- Large metal base with positioning scale keeps boards steady and position repeatable
- Part of the 6558 optical ecosystem — mounts on the Pushi repair desk and YCS Dragon arm alongside QianLi tools
Application Scenarios
- Motherboard-level micro-soldering: BGA rework, jumper wires, and connector replacement under 20x–58x
- Live demonstration — the CTV 0.5x port sends the view to a screen so customers or trainees follow along
- Photo documentation of board condition before and after repair
- Circuit chip, biological slice, and precision instrument inspection — the officially listed multi-scenario uses
- Livestream repair setups when paired with an HDMI camera on the trinocular port
Frequently Asked Questions
Who makes YCS microscopes — is the 6558S a genuine YCS product?
YCS (Repair Master) is the tool brand built around Mr. Yang, one of the best-known repair educators in the phone repair community. Vexagoo is an authorized distributor of QianLi and YCS repair tools, so every 6558S is factory-genuine with full warranty support.
How is the YCS 6558S different from the QianLi 6558 Gorilla?
Both are trinocular stereo zoom microscopes from the same 6558 optical ecosystem. The Gorilla covers a wider 3.5X–90X range and is the high-magnification flagship; the 6558S covers 6.5X–58X at a friendlier price and includes the CTV 0.5x camera adapter and a limiter ring in the box. See the full side-by-side in our Gorilla vs 6558S comparison.
What does the trinocular port do?
The third port carries the included CTV 0.5x adapter, which feeds the same image your eyes see to an HDMI monitor or camera. You solder through the eyepieces while a customer or trainee watches the screen — and you can capture photos for documentation.
How is the total magnification calculated?
Multiply the eyepiece power by the objective zoom: 10x eyepieces × 0.65x–5.8x zoom gives 6.5x to 58x continuous magnification. Swap to higher-power eyepieces to extend the range further.
Can I wear glasses at the eyepieces?
Yes. The WF10X23 eyepieces are high-eyepoint wide-angle, designed for eyeglass wearers, and each eyepiece has its own diopter fine adjustment so both eyes converge on a sharp image.
Can it mount on the Pushi repair desk or a YCS arm?
Yes. The 6558S uses the same post-mount standard as the rest of the 6558 ecosystem, so it fits the Pushi repair desk setup and the YCS Dragon multi-axis arm, with the LED ring light and CTV adapter working side by side.
Do you offer wholesale pricing for the YCS 6558S?
Yes. Vexagoo is an authorized distributor of QianLi and YCS repair tools, offering factory-direct wholesale pricing with no strict minimum order quantity. Contact us on WhatsApp or email for bulk quotes and distributor pricing.
More questions? Browse the completeTesting & Inspection FAQ →
