YCS 71 Ultra Trinocular Microscope
The YCS 71 Ultra is the precision-focused trinocular stereo microscope of Mr. Yang's YCS line: a 0.67x-4.5x zoom with an 11-step fine-tuning knob delivers 6.75x-45x total magnification through high-eyepoint 10x/23 wide-angle eyepieces. Its integrated dust-resistant objective needs no external dust cover, each eyepiece adjusts independently (-5 to +5 diopter), and rotatable rubber eyepiece guards set the working distance. Available as Package B (microscope only) or Package C with the YCS X80 industrial camera and CTV 0.5 adapter for live monitor work.
Key Specifications
- Brand
- YCS
- Model
- YCS 71 Ultra
- Type
- Trinocular stereo zoom microscope
- Zoom Ratio
- 0.67x - 4.5x with 11-step fine adjustment
- Total Magnification
- 6.75x - 45x (with 10x eyepieces)
- Eyepieces
- High-eyepoint wide-angle 10x/23 x2, independent left-right diopter (-5 to +5)
- Eyecups
- Rotatable rubber eyepiece guards
- Objective
- Integrated dust-resistant high-transmittance objective - no external dust cover needed
- Optics
- Anti-reflection coated, high refractive index and high transmittance
- Camera Port
- Trinocular top port; Package C includes CTV 0.5 adapter + YCS X80 camera
- Stand
- Metal pillar column and base with focus arm
- Size (approx.)
- ~37 x 25 x 41 cm (same class as the YCS 6575X)
- Weight (approx.)
- ~4.5 kg (same class as the YCS 6558 series)

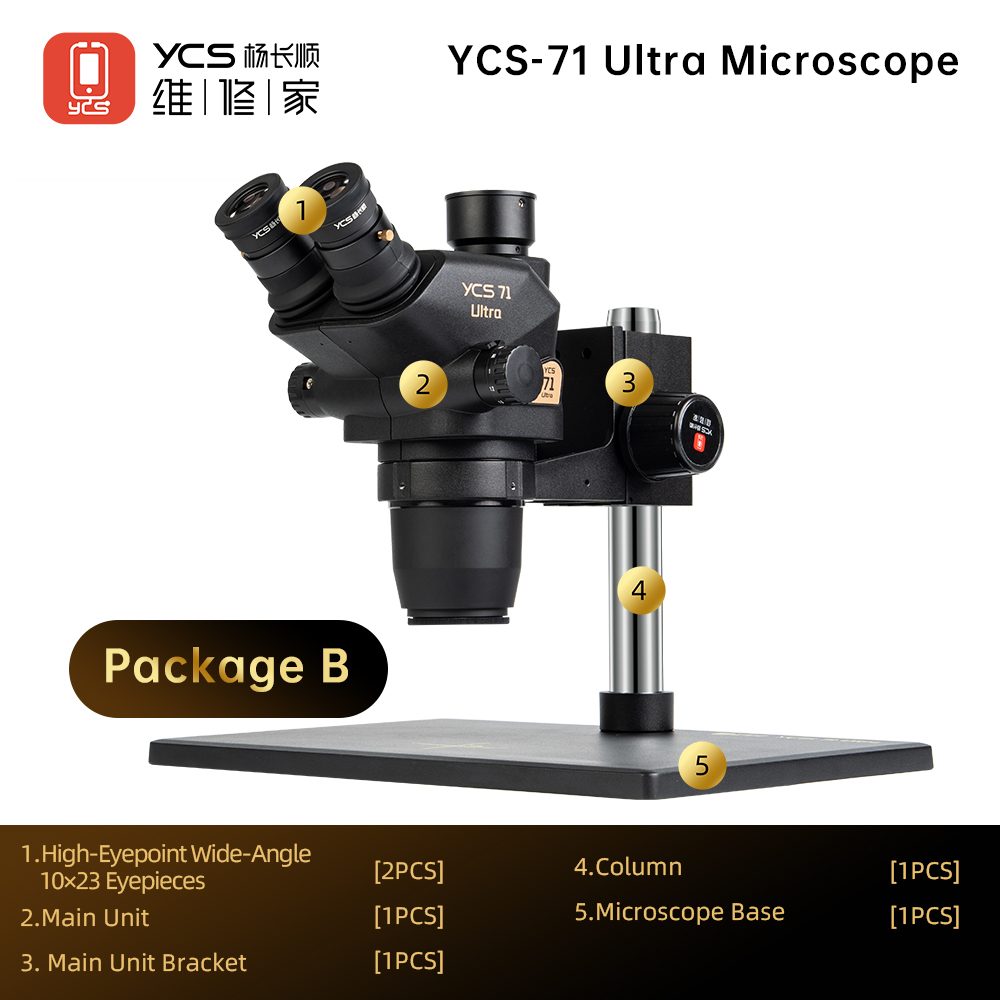

- Package B
- 10x/23 eyepieces x2, main unit, main unit bracket, column, microscope base

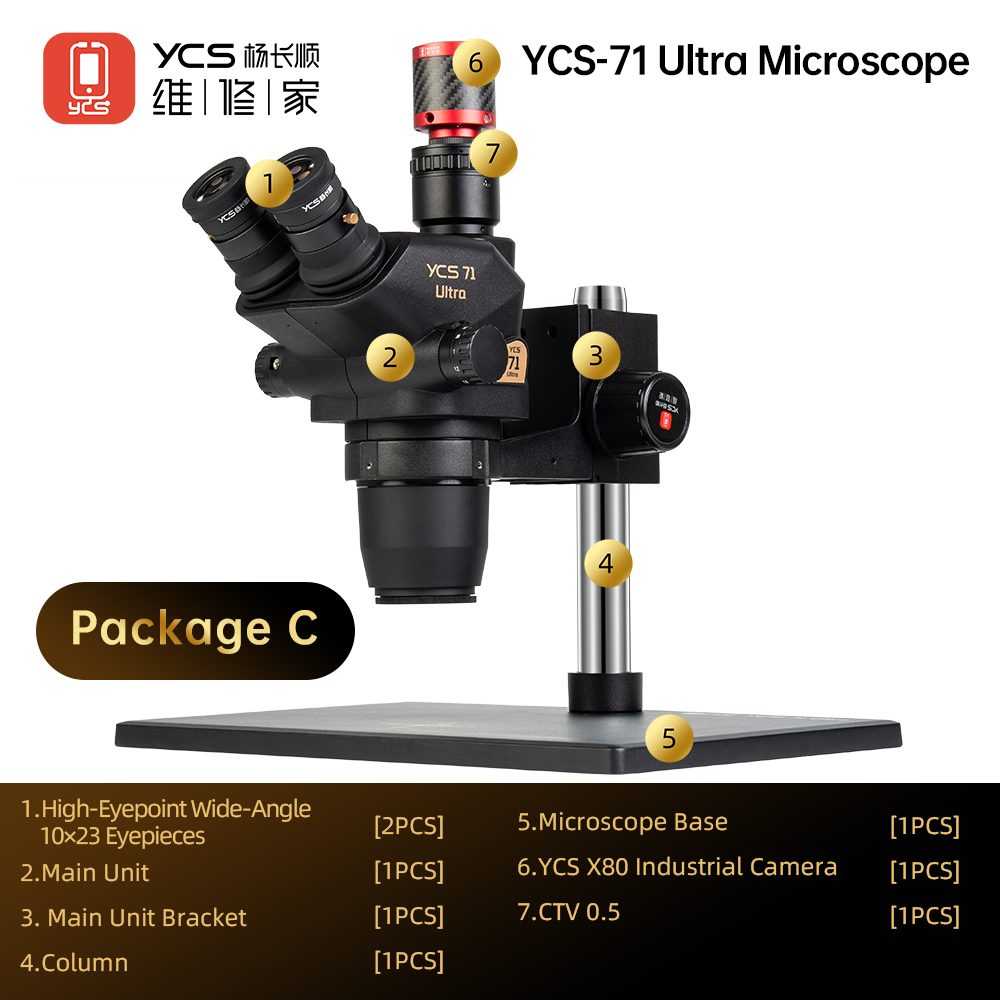

- Package C
- Package B + YCS X80 industrial camera + CTV 0.5 adapter
Product Overview
Key Features
- 11-step fine-tuning zoom knob - repeatable, detented magnification across the 6.75x-45x range
- Integrated dust-resistant objective - no external dust cover to fit or clean; contamination is blocked at the source

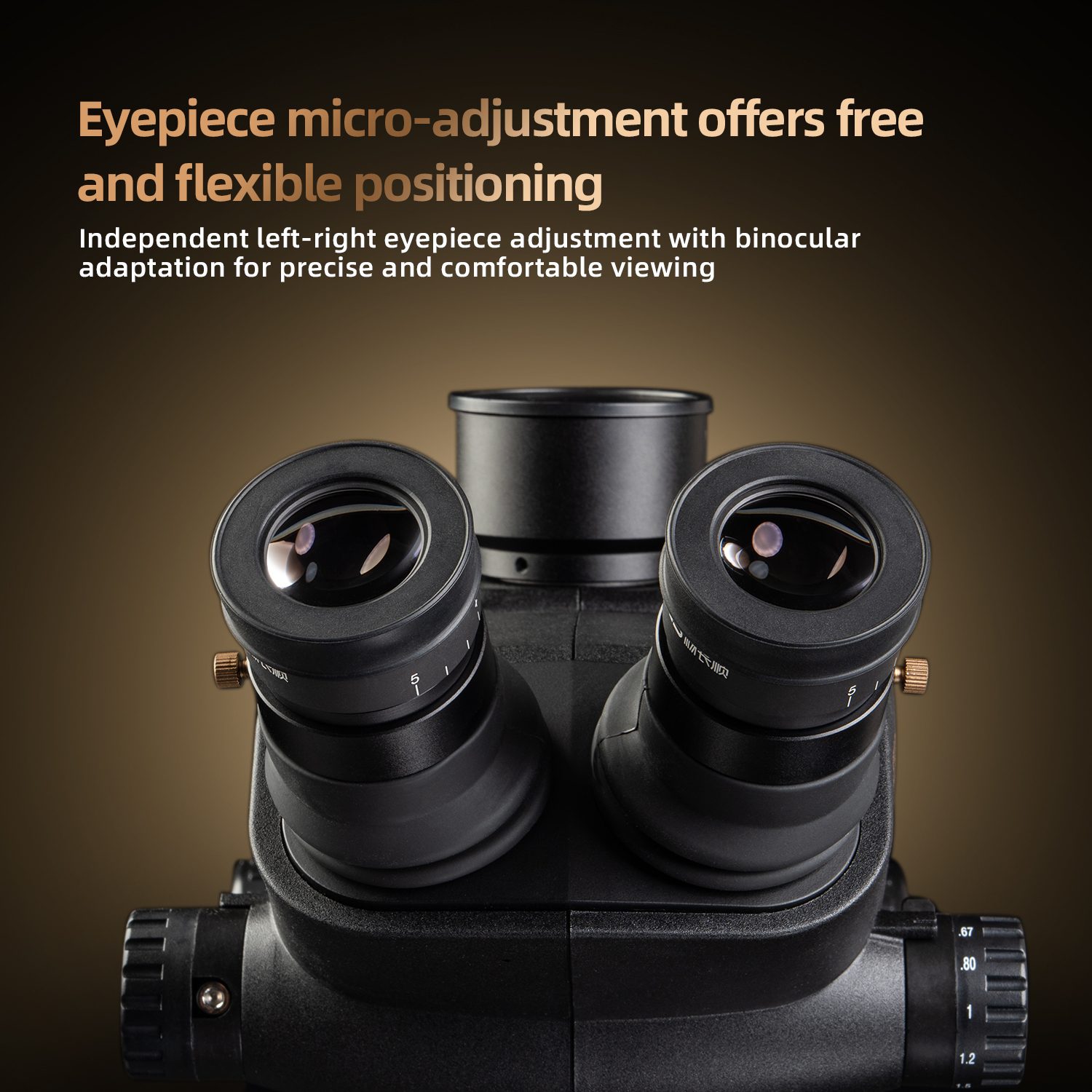

- Independent left-right eyepiece adjustment with -5 to +5 diopter for precise binocular convergence
- Rotatable rubber eyepiece guards set the optimal working distance effortlessly
- Anti-reflection coated wide-angle optics - high refractive index and high transmittance for a wide, bright field of view
- True trinocular head - the top port feeds a camera or monitor (Package C ships with the YCS X80 camera and CTV 0.5 adapter)
- Stable metal pillar stand with focus arm keeps boards steady and position repeatable
- Part of the YCS microscope ecosystem - mounts alongside QianLi tools on the Pushi repair desk and YCS Dragon arm
Application Scenarios
- Repeatable documentation - the 11-step detents return to the exact same magnification for before/after photo sets
- Low-maintenance benches - the sealed dust-resistant objective suits dusty workshops and shared stations
- Live demonstration - Package C's X80 camera and CTV 0.5 adapter put your view on a monitor for customers or trainees
- Eyeglass-friendly soldering sessions with high-eyepoint eyepieces and adjustable rubber guards
- Board-level repair: connectors, shields, and chip-level work across the 6.75x-45x range
Frequently Asked Questions
Who makes the YCS 71 Ultra - is it a genuine YCS product?
YCS (Repair Master) is the tool brand built around Mr. Yang, one of the best-known repair educators in the phone repair community. Vexagoo is an authorized distributor of QianLi and YCS repair tools, so every 71 Ultra is factory-genuine with full warranty support.
What is the difference between Package B and Package C?
Package B is the complete microscope: two 10x/23 high-eyepoint eyepieces, main unit, bracket, column, and base. Package C adds the YCS X80 industrial camera and the CTV 0.5 adapter on the trinocular port, so you can drive an HDMI monitor, record repair video, or run a training screen out of the box.
How does the YCS 71 Ultra compare to the YCS 7050X?
Both cover the mid-range window (6.75x-45x vs 7x-50x), but the 71 Ultra is the precision pick: an 11-step detented zoom returns to exact magnifications repeatedly, and the integrated dust-resistant objective removes the need for an external dust cover. The 7050X is the continuous-zoom value pick. See the full 71 Ultra vs 7050X comparison.
How is the YCS 71 Ultra different from the QianLi 6558 Gorilla?
The Gorilla is the high-magnification flagship with a 3.5X-90X continuous zoom for fine BGA ball inspection. The 71 Ultra covers 6.75x-45x with an 11-step fine-tuning knob and a dust-proof integrated objective - precision and low maintenance over raw range. See the full 71 Ultra vs Gorilla comparison.
What does the integrated dust-resistant objective mean in practice?
The objective housing is sealed with a built-in high-transmittance lens, so dust and flux smoke cannot settle on the front element. You never fit, remove, or clean an external dust cover - the lens stays protected at the physical source.
Can I wear glasses at the eyepieces?
Yes. The 10x/23 eyepieces are high-eyepoint wide-angle, each side adjusts independently from -5 to +5 diopter, and the rotatable rubber eyepiece guards let you set a comfortable working distance whether or not you wear glasses.
Do you offer wholesale pricing for the YCS 71 Ultra?
Yes. Vexagoo is an authorized distributor of QianLi and YCS repair tools, offering factory-direct wholesale pricing on both Package B and Package C with no strict minimum order quantity. Contact us on WhatsApp or email for bulk quotes and distributor pricing.
