Mega-Idea Super iR Cam 2S Pro
The Mega-Idea Super iR Cam 2S Pro is a 3D infrared thermal imaging camera for phone repair. A 256×192 sensor, 25 Hz refresh, adjustable vertical column, and full-frame temperature measurement turn the motherboard into a live heat map, while the PCBA electricity-leakage quick check mode pinpoints shorted components.
Key Specifications
- Brand
- Mega-Idea
- Model
- Super iR Cam 2S Pro
- Product Type
- 3D Infrared Thermal Imaging Analyzing Camera
- Sensor Resolution
- 256 × 192 px
- Frame Frequency
- 25 Hz
- Image Storage Format
- JPG (640 × 480)
- Video Storage Format
- MP4
- Temperature Measurement
- Full-frame, range-adjustable
- Focal Distance
- 2 mm – ∞ (rotating focus)
- Vertical Adjustment
- Upgraded column, widened focusing range
- Operating Humidity
- ≤ 95% RH
- Port
- USB Type-C
- Input Voltage
- 5 V DC
- Net Weight
- 550 g

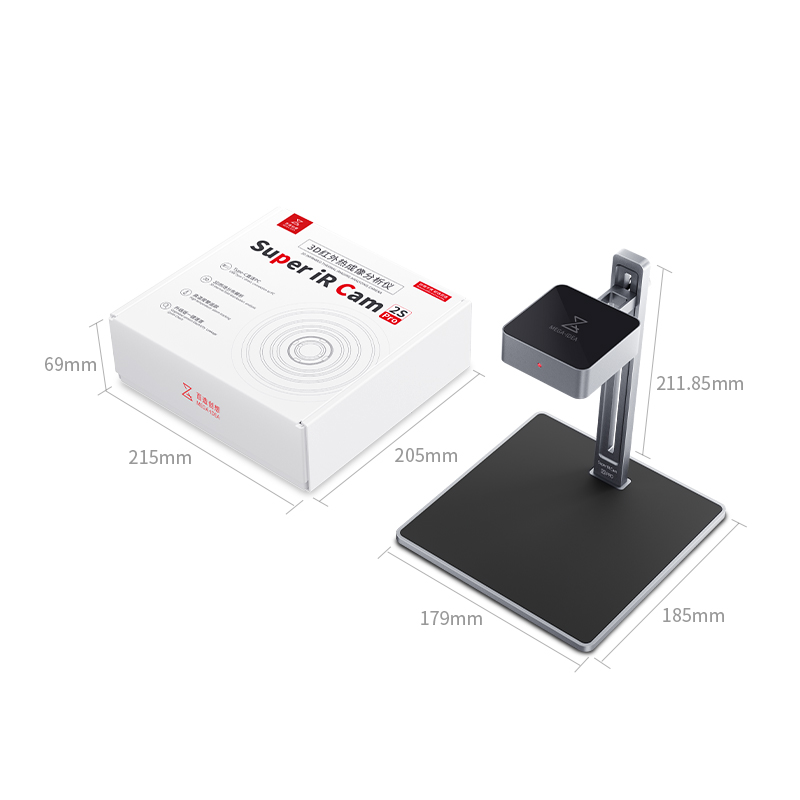

- Product Dimensions
- 211.85 × 185 × 179 mm
- Installation
- Removable / portable stand
Product Overview
Key Features
- 3D infrared thermal field distribution for spatial heat analysis
- 256 × 192 high-sensitivity sensor with 25 Hz real-time refresh
- Upgraded focusing distance — rotate the lens to control image clarity

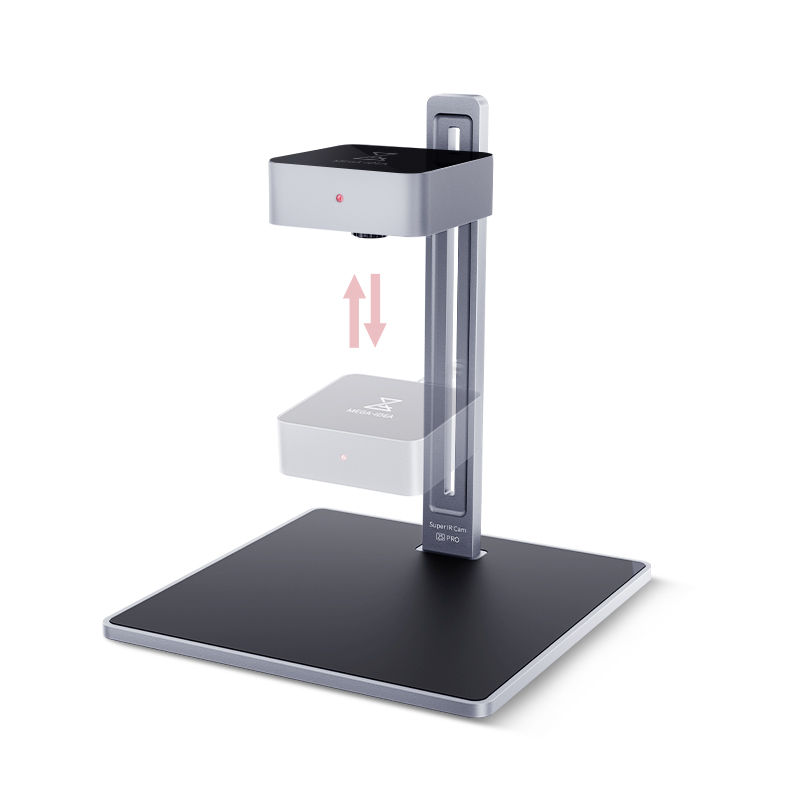

- Upgraded vertical adjusting column for wider focusing range
- One-click PCBA electricity-leakage quick check mode
- Full-frame temperature measurement with drag-to-adjust temperature range
- USB Type-C plug-and-play, 5 V DC — no external power brick
- JPG photos + MP4 video recording for documentation
- Removable stand + 550 g compact body — bench-top or on-site use
Application Scenarios
- PCBA electricity-leakage detection and short-circuit localization
- Thermal analysis of charging ICs, power rails, and battery management chips
- Verifying heat dissipation design of new or reworked boards
- Documenting repair cases with JPG + MP4 thermal recordings
- Quality control on incoming parts and reworked motherboards
- General electronics bench diagnostics where non-contact temperature measurement is needed
Frequently Asked Questions
What makes the Super iR Cam 2S Pro different from a 2D thermal camera?
2D cameras show a flat heat map. The 2S Pro renders a 3D thermal field distribution, so you see not just where the heat is but how it spreads through the board layers — making it easier to find the root cause of a short or a hot IC.
Can it locate the shorted component on a phone motherboard?

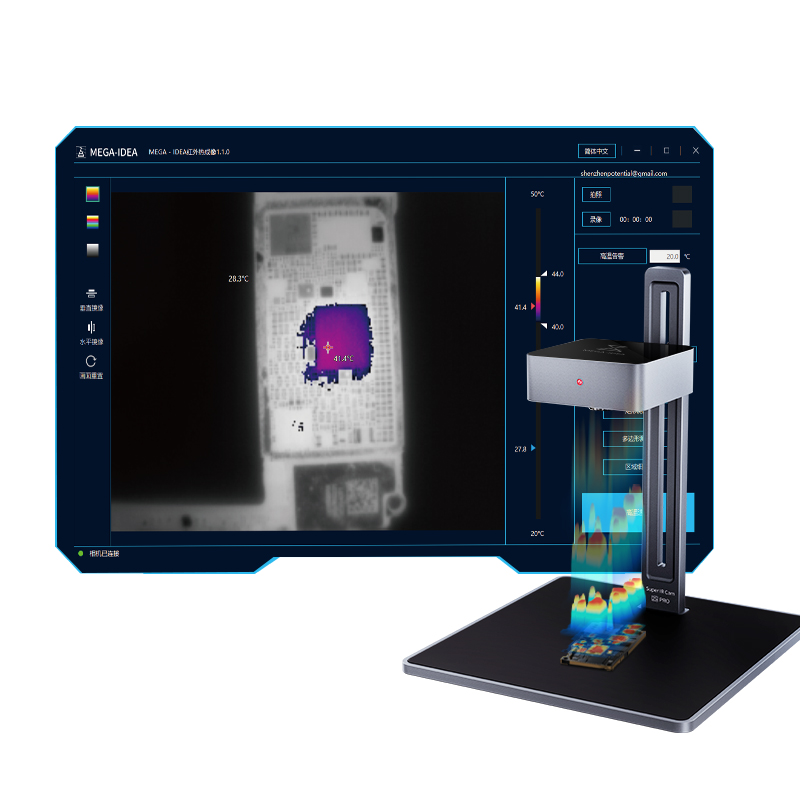

Yes. The bundled MEGA-IDEA software has a one-click PCBA electricity-leakage quick check mode. Power the board, point the camera, and the software adjusts the temperature range to surface the abnormally hot component drawing the leakage current.
What is the resolution and refresh rate?
The sensor is 256 × 192 px with a 25 Hz refresh rate. Images are saved as JPG at 640 × 480, and videos are recorded as MP4. The 25 Hz refresh is high enough to watch heat develop in real time.
Does it need an external power supply?
No. The camera runs on standard 5 V DC through a USB Type-C cable. Plug it into any USB port on your bench computer and it works.
Is the focusing distance adjustable for different board sizes?
Yes. The 2S Pro has a rotating focus from 2 mm to infinity and an upgraded vertical adjusting column, so you can frame everything from a tiny single IC to a full-size smartphone motherboard.
More questions? Browse the completeThermal Imaging FAQ →
