QianLi HAC6 Power Expansion Dock

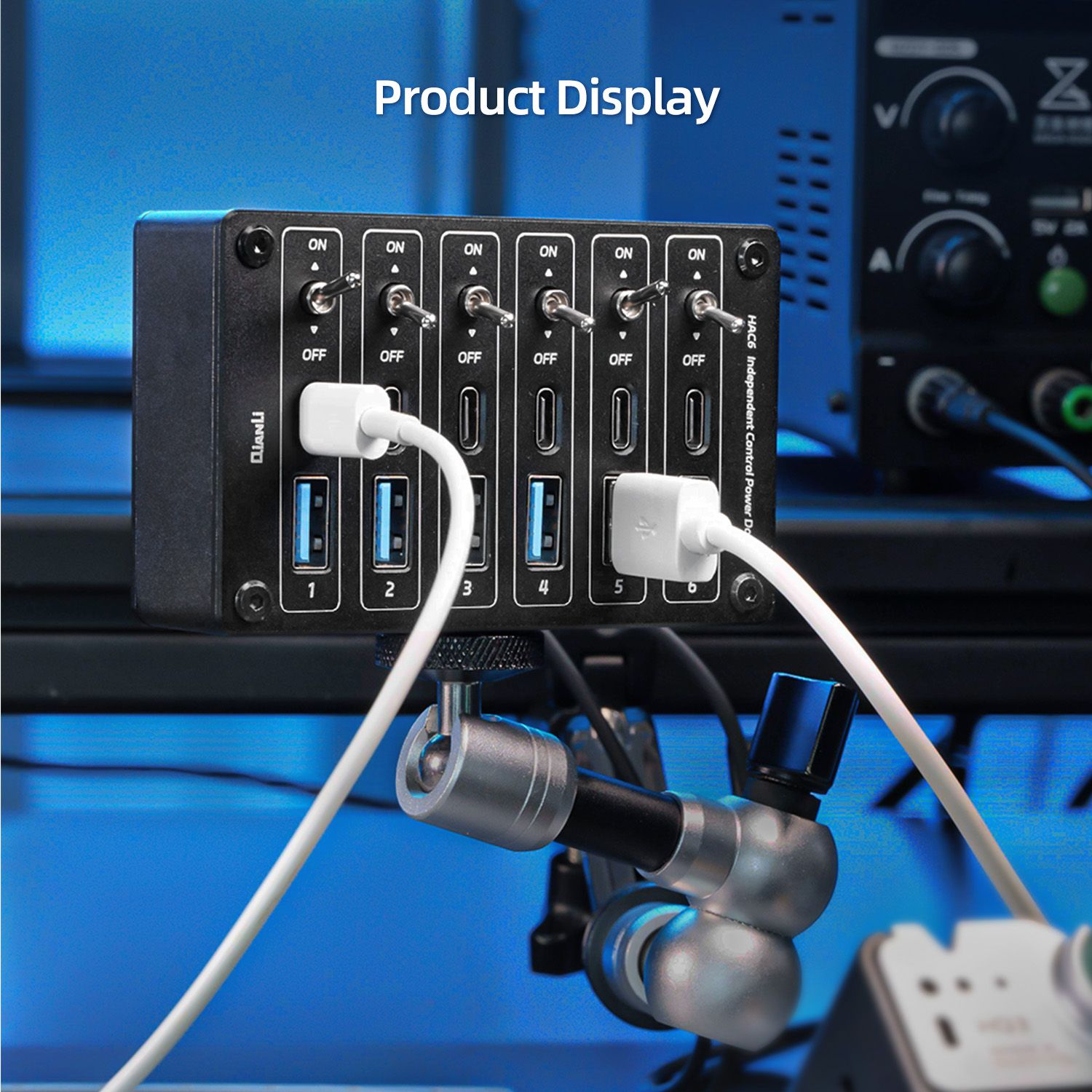

The QianLi HAC6 Independent Control Power Expansion Dock is a 6-in-1 bench power hub that turns one repair power supply into six independently switched channels. Each channel pairs a USB-C and USB-A port with its own toggle switch, plus built-in black and red banana jacks, an aluminum alloy body, and a reserved 1/4-inch screw hole for bracket mounting.
Key Specifications
- Brand
- QianLi Innovation
- Model
- HAC6
- Channels
- 6 Independent Channels
- Ports
- 6 × USB-C + 6 × USB-A (one pair per channel)
- Control
- Independent Toggle Switch per Channel (Up ON / Down OFF)
- Power Input
- Black & Red Banana Jacks (repair power supply)
- Mounting
- Reserved 1/4-inch Screw Hole, Base or Side-Clamp Bracket (optional)
- Body Material
- Aluminum Alloy, High-Efficiency Heat Dissipation
- Compatibility
- USB-A / Type-C Devices
- Product Dimensions
- 91 × 61 × 43 mm
- Product Weight
- 152 g
- Package Dimensions
- 86 × 122 × 57 mm
- Package Weight
- 176 g
- Package List
- Power Expansion Dock ×1 (banana cables & bracket not included)
Product Overview
Key Features

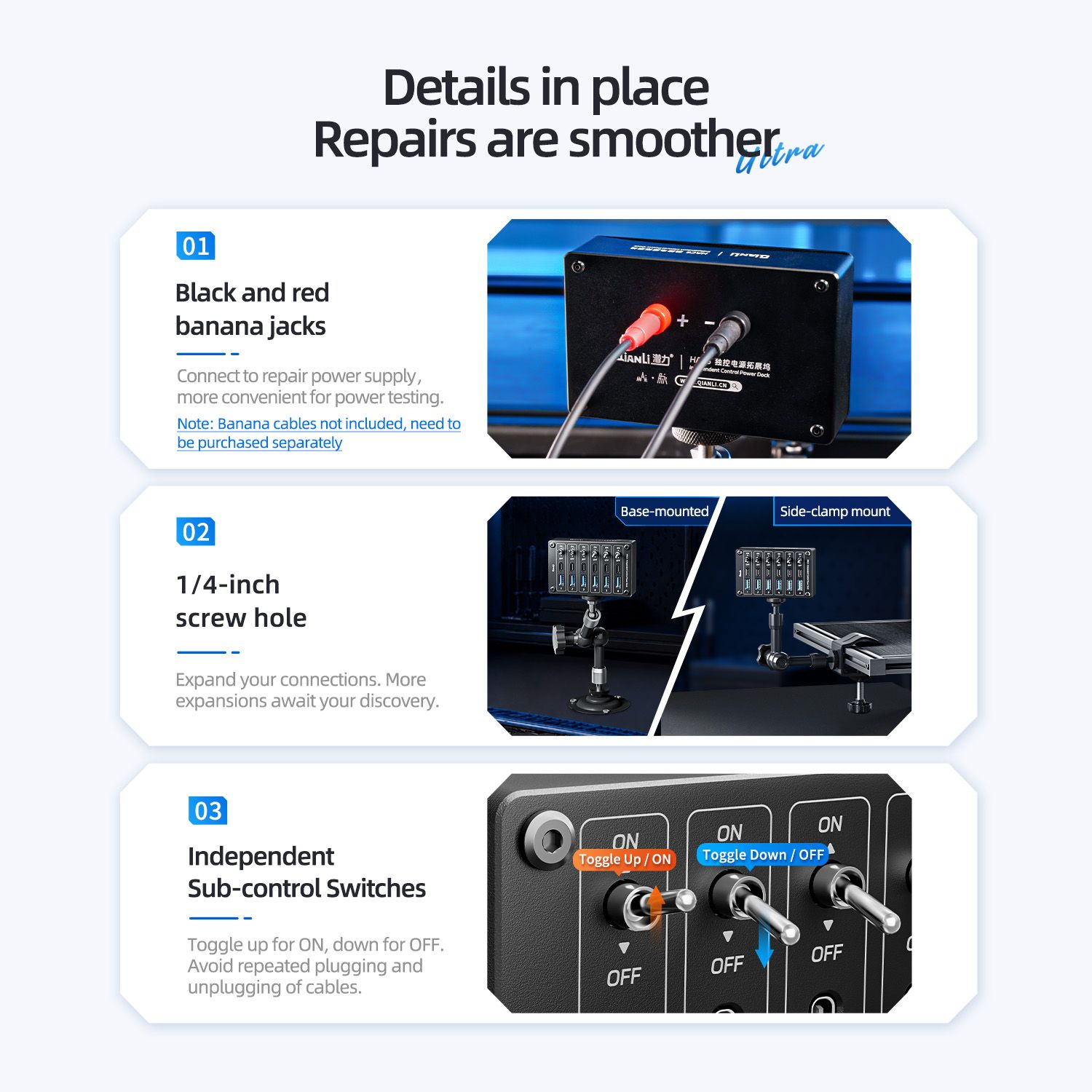

- 6-in-1 power expansion — one repair power supply drives six independent output channels
- Independent sub-control switch on every channel: toggle up for ON, down for OFF, no repeated plugging
- Each channel carries one USB-C and one USB-A port for flexible device pairing
- Built-in black and red banana jacks connect straight to a repair power supply for power testing
- Aluminum alloy body with high-efficiency heat dissipation for all-day bench duty
- Reserved 1/4-inch screw hole supports base-mounted or side-clamp bracket installation
- Compact 91 × 61 × 43 mm footprint weighs only 152 g and keeps the workstation tidy
Application Scenarios
- Powering several phones or boards on the bench without swapping cables
- Running a device under test while a second channel powers a spare fixture
- Power testing through the built-in banana jacks connected to a repair power supply
- Clamping the dock beside a microscope or soldering station using a 1/4-inch bracket arm
Frequently Asked Questions
What does the QianLi HAC6 do?
It expands one repair power supply into six independently controlled output channels. Every channel has its own toggle switch and a USB-C plus USB-A port pair, so you can power multiple devices without repeatedly plugging and unplugging cables.
Does the HAC6 come with banana cables?
No. The built-in black and red banana jacks accept standard banana plugs, but the cables need to be purchased separately.
Can each channel be switched on and off separately?
Yes. Each channel has an independent sub-control switch — toggle up for ON and down for OFF.
How is the HAC6 mounted on the bench?
A reserved 1/4-inch screw hole accepts optional brackets for base-mounted or side-clamp installation, so you can attach it to a flexible arm or bench post.
What devices can it power?
Any device charged or powered over USB-A or Type-C — phones, tablets, and bench fixtures used during repair.
What are its dimensions and weight?
The dock measures 91 × 61 × 43 mm and weighs 152 g, so it sits comfortably beside a microscope or power supply.
