Mega Idea BZ-CW01 Waveform Current Meter
The Mega Idea BZ-CW01 Waveform Current Meter is a QianLi Tools new arrival that turns invisible current changes into visible waveforms. Its 4.3-inch color display captures real-time current curves, inrush peaks, standby micro-fluctuations, and load transients — making it the next diagnostic upgrade for phone motherboard and precision electronics repair.
Key Specifications
- Brand
- Mega Idea (by QianLi Innovation)
- Model
- BZ-CW01 Waveform Current Meter
- Display
- 4.3-inch Color TFT
- Detection Modes
- Curve / Pointer / Multimeter
- Outputs
- Type-C, USB-A, Banana Jack, Multimeter Jacks
- Response Speed
- Millisecond-level Dynamic Capture
- PC Interface
- Yes — Data Logging & Remote View
- Multimeter Functions
- Voltage / Resistance / Continuity / Diode
- Application
- Phone Motherboard Power Diagnosis, Micro-current Observation
Product Overview
Key Features
- 4.3-inch color TFT display renders real-time current waveforms for instant visual diagnosis
- Three detection modes — Curve, Pointer, and Multimeter — switch on demand for different workflows
- Millisecond response captures power-on, startup, trigger, and load transient events
- Inrush current capture spots startup anomalies and peak current events that standard meters miss
- Standby micro-current measurement reveals hidden power drain and sleep-state faults
- Auto trigger locks onto abnormal fluctuations for fast, repeatable fault location
- Full multimeter mode covers voltage, resistance, continuity, and diode tests in one device

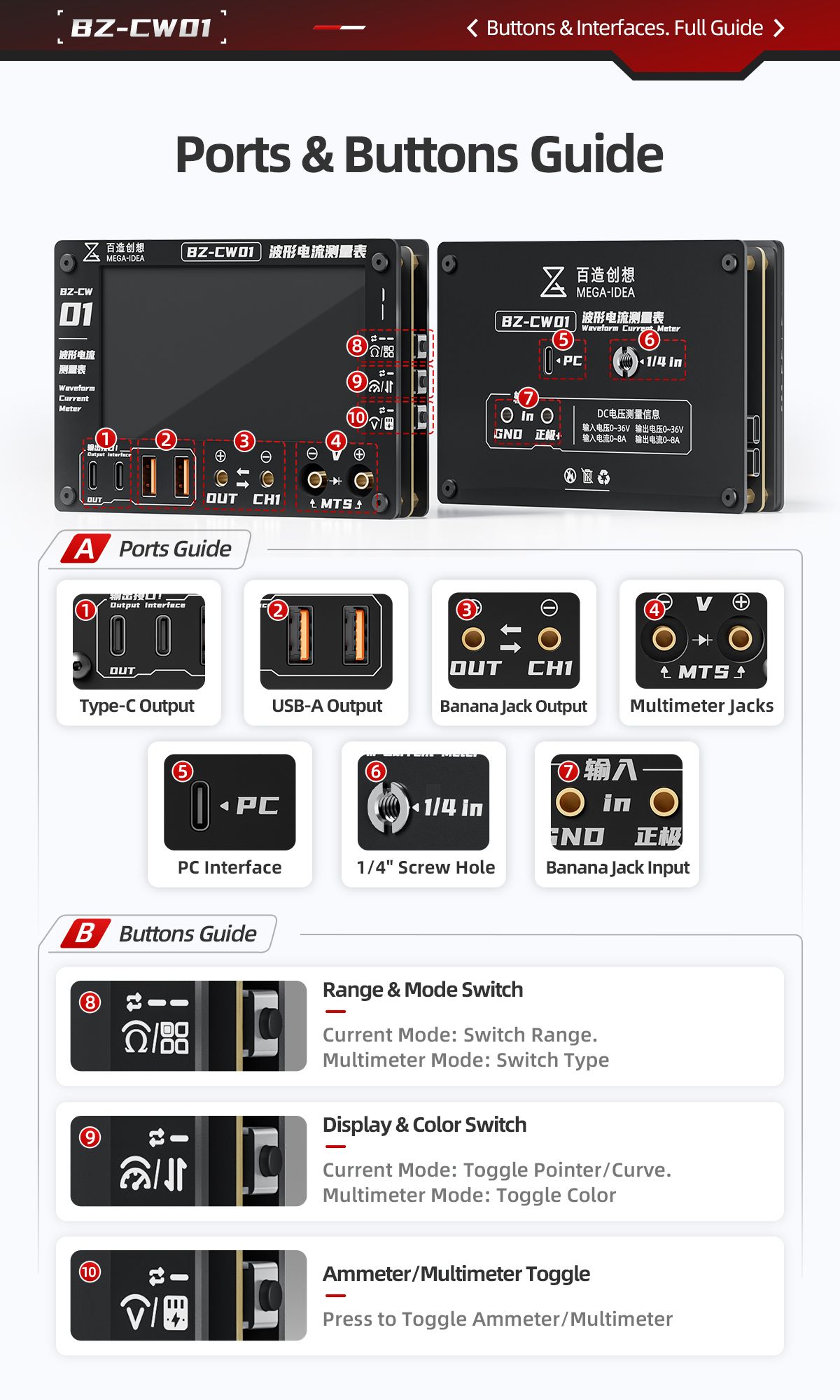

- Multiple outputs (Type-C, USB-A, banana jack) and PC interface fit modern repair benches
Application Scenarios
- Diagnosing phone motherboard boot current curves and power-on anomalies
- Capturing inrush current spikes during device startup and charger insertion
- Measuring standby micro-current to locate power-hungry or leaky components
- Testing voltage, resistance, continuity, and diodes in everyday repair workflows

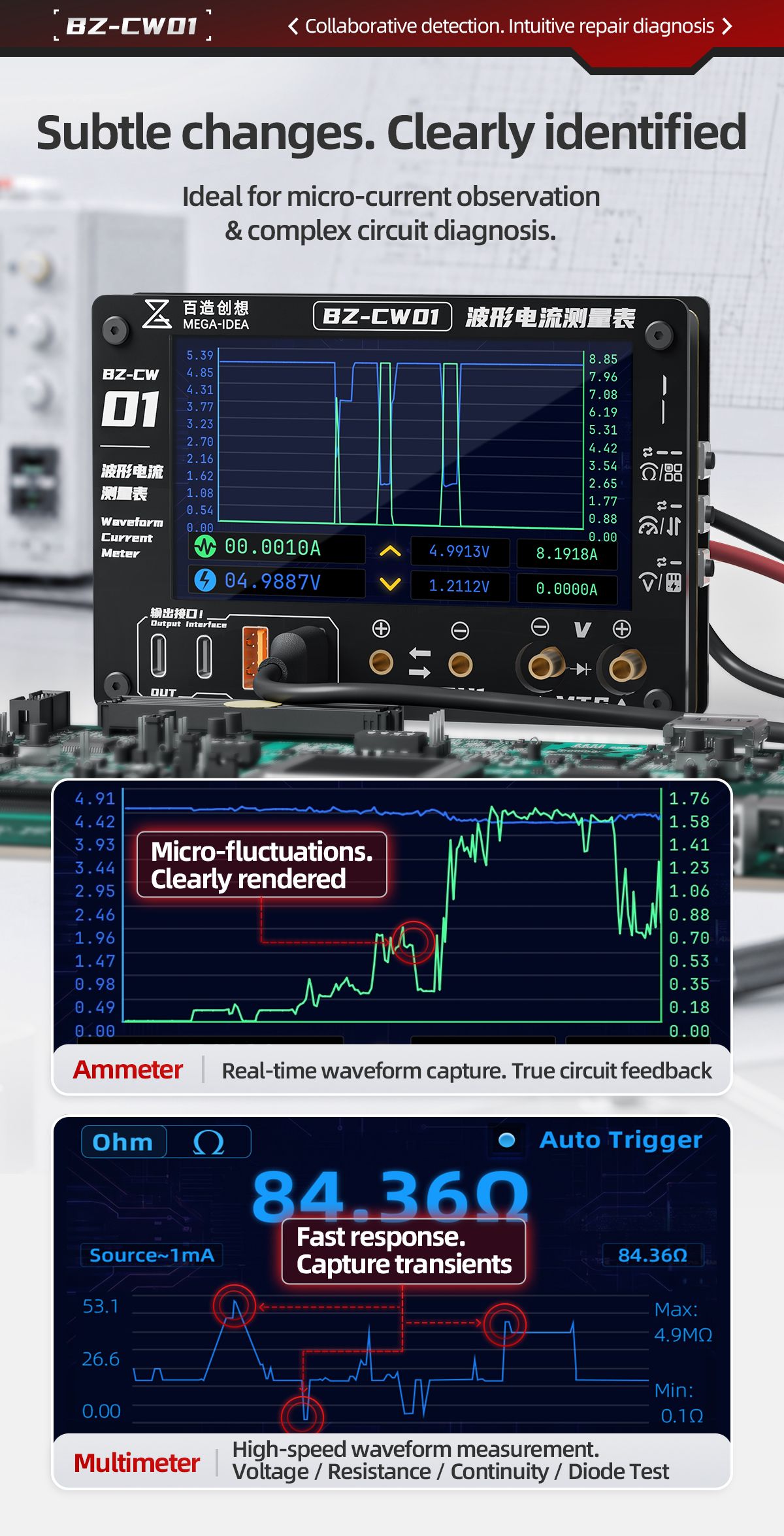

- Observing micro-fluctuations in complex circuit repair and board-level diagnostics
- Logging waveform data to PC for documentation, training, or customer reports
Frequently Asked Questions
What is a waveform current meter and why is it better than a standard multimeter?
A waveform current meter shows how current changes over time as a live curve, while a standard multimeter only displays a single average number. The Mega Idea BZ-CW01 reveals peaks, dips, inrush spikes, and transient anomalies that a normal meter averages out or misses entirely — essential for diagnosing motherboard power faults.
What can the BZ-CW01 detect in phone repair?
It captures boot current curves, inrush spikes at power-on, standby micro-current drain, and abnormal load transients. These signals help identify shorted rails, failed power ICs, battery-related issues, and leaky components on IP series and Android motherboards.

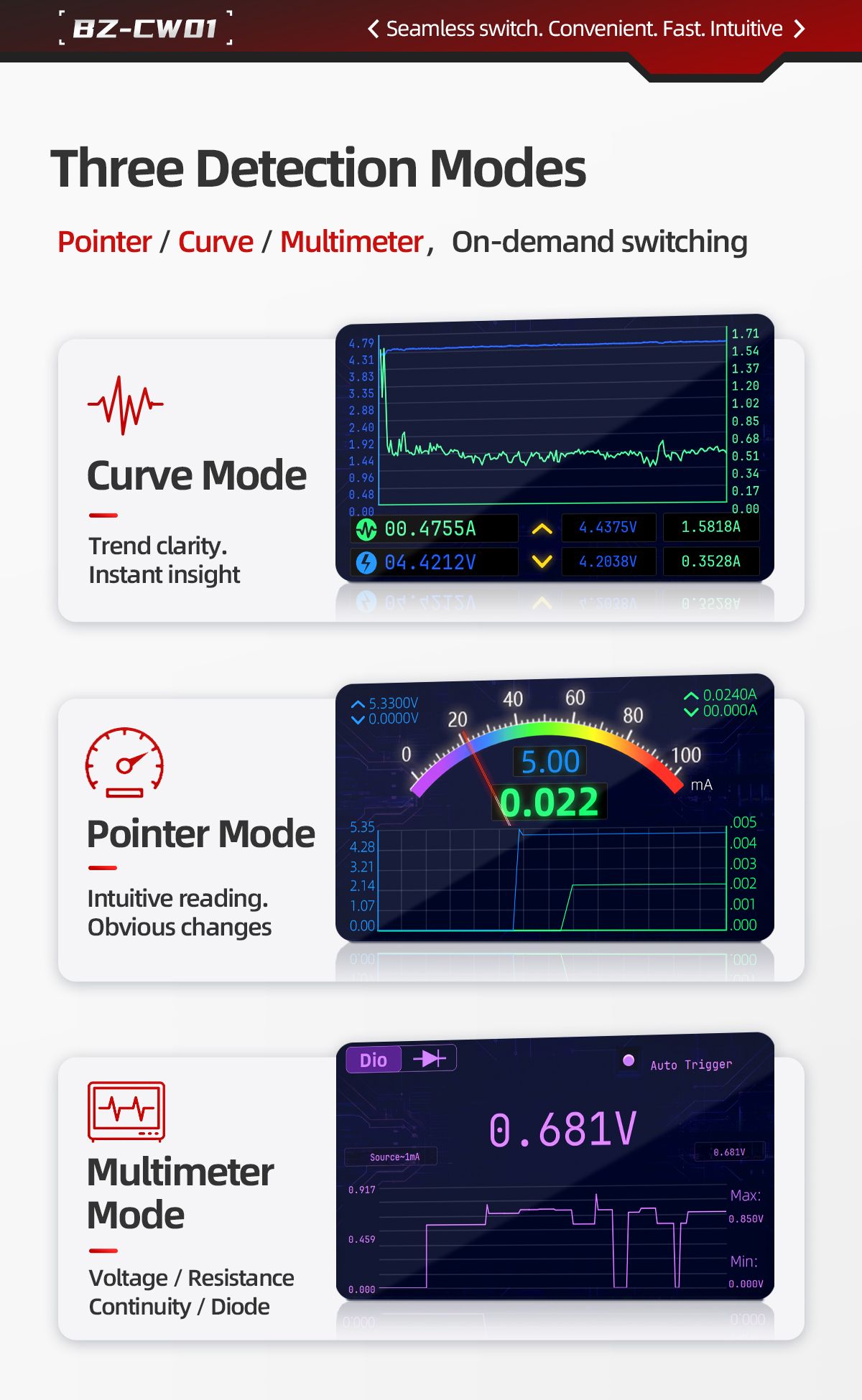

What are the three detection modes?
Curve Mode draws a live current waveform for trend analysis; Pointer Mode shows an analog-style gauge for intuitive reading; Multimeter Mode provides standard voltage, resistance, continuity, and diode tests. Technicians can switch modes on demand without changing probes.
Is the BZ-CW01 suitable for IP series and Android motherboard repair?
Yes. The millisecond response and micro-current sensitivity make it ideal for phone motherboard diagnostics, including boot failure analysis, current drain detection, and charger/power rail verification on both IP series and Android devices.
Do you offer wholesale pricing for the BZ-CW01?
Yes. As an authorized distributor of QianLi Innovation (Mega Idea) and YCS products, Vexagoo offers factory-direct wholesale pricing with no minimum order. Contact us on WhatsApp or email for bulk quotes and distributor pricing.
