QianLi DM800 Grinding Pen
The QianLi DM800 Micro Self-Locking Grinding Pen is a 5-speed cordless rotary tool for phone repair — self-locking quick-change chuck, up to 16,000 RPM, forward/reverse rotation, and five grinding heads for shield cutting, pad drilling, and stripped screw removal.
Key Specifications
- Brand
- QianLi
- Model
- DM800 Micro Self-Locking Grinding Pen
- Input Voltage
- 5V
- Charging Port
- Type-C
- Speed
- 16,000 R/min Max, 5-Speed Adjustable
- Rotation
- Forward / Reverse with Indicator Lights
- Battery Capacity
- 2400 mAh
- Chuck
- Self-Locking Quick-Change, Concentric Clamping
- Product Size
- 24 × 24 × 167 mm
- Net / Gross Weight
- 116 g / 162 g

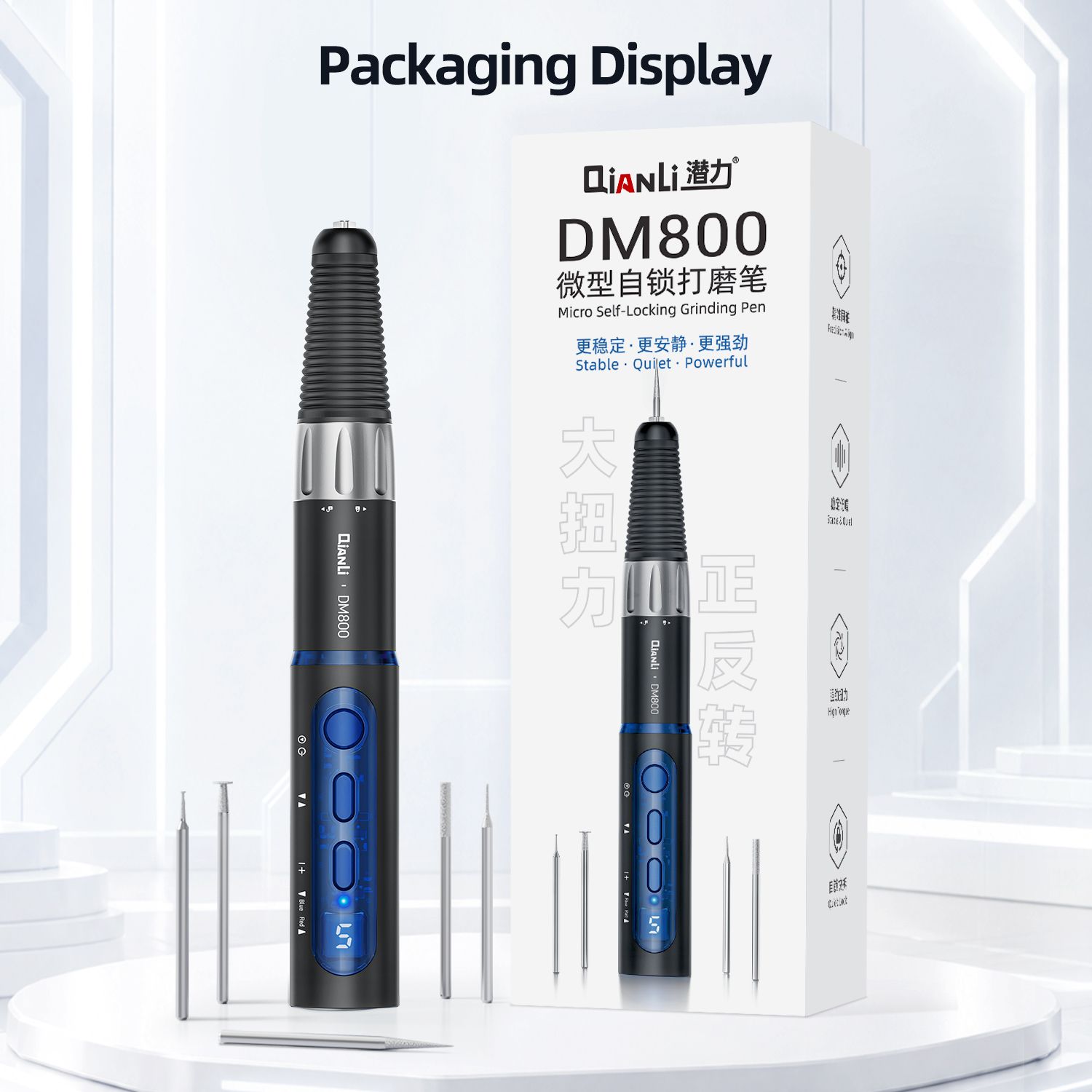

- Package Contents
- Polishing Pen ×1, Grinding Heads ×5
Product Overview
Key Features

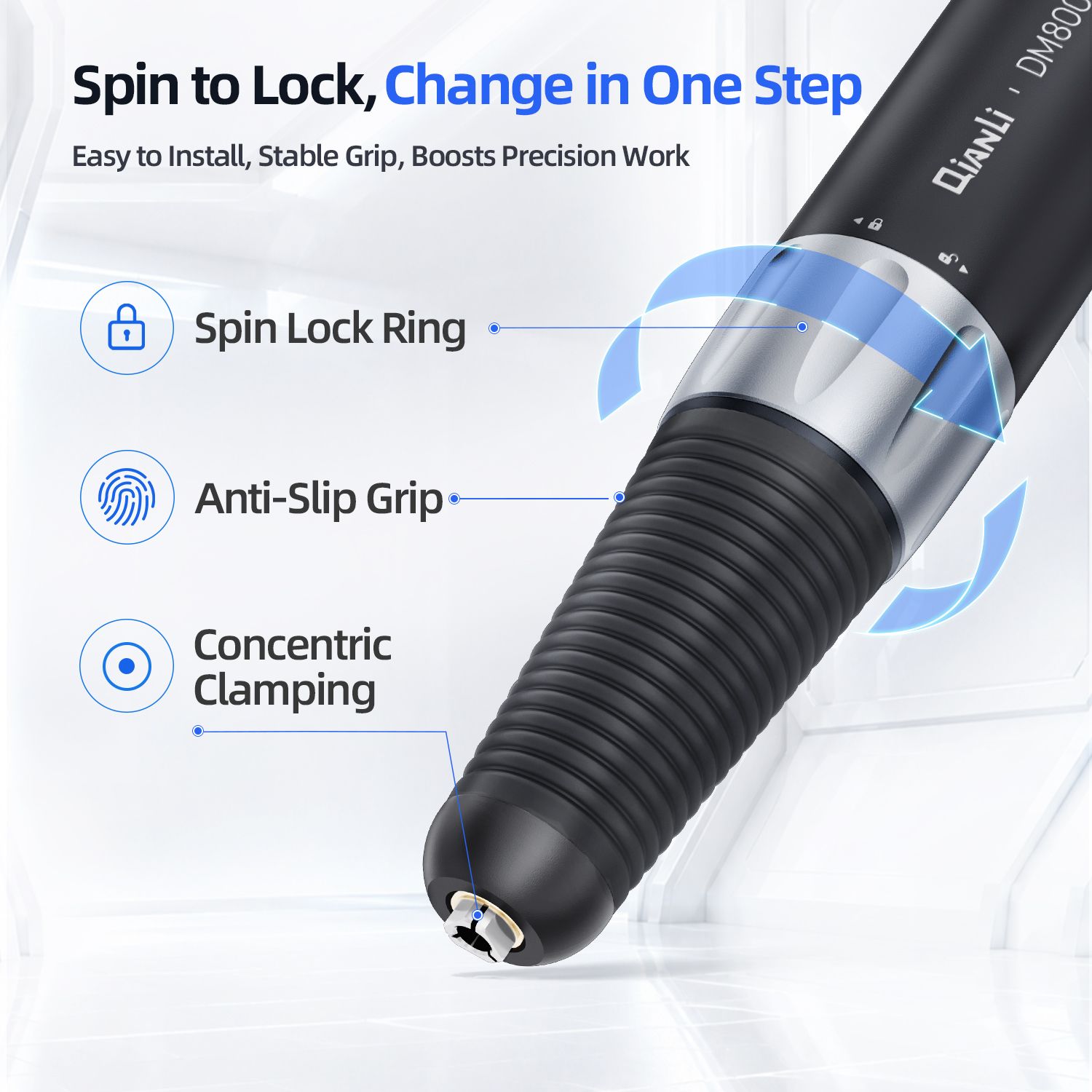

- Self-locking quick-change chuck — spin to lock, swap heads in one step
- Concentric clamping keeps the head true with no deviation in precision work
- 5-speed digital control from stable low speed up to 16,000 RPM max
- One-touch forward/reverse rotation (blue = forward, red = reverse)
- Five standard grinding heads included: 0.8A pad drilling, 4.0K shield cutting, 2.5A edge trimming, 2.0D hole drilling, 1.5K stripped screw fix
- High-efficiency motor delivers stable output with low vibration and low noise
- 2400 mAh battery supports long non-stop operation, recharges via Type-C
- Pen-style body at 116 g — lightweight, balanced center of gravity, anti-slip grip

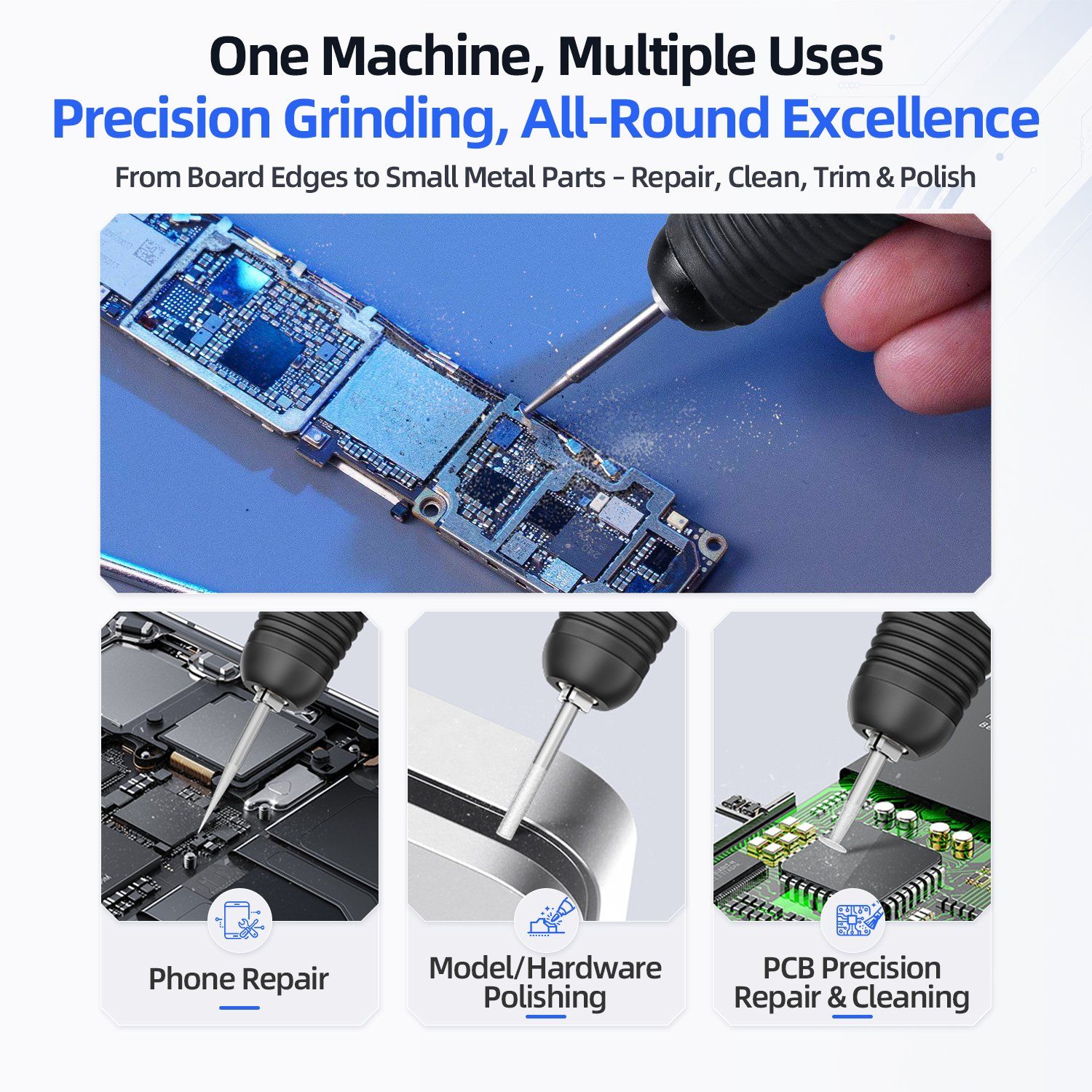

Application Scenarios
- Cutting phone mid-frame shields and shielding cans during board repair
- Drilling and reworking pads and holes on motherboards
- Removing stripped screws without damaging the surrounding board
- Polishing model parts, hardware, and small metal components
- PCB precision repair and cleaning in professional repair shops
Frequently Asked Questions
What tasks is the DM800 used for?
Shield cutting, pad drilling, edge trimming, hole drilling, and fixing stripped screws on phone motherboards — plus model or hardware polishing and PCB precision cleaning.
How do I change grinding heads?
Insert the head into the chuck, spin the lock ring to secure, and confirm stability. The self-locking design makes swaps one-step fast, with concentric clamping to prevent wobble.
How long does the battery last?
The 2400 mAh battery supports extended non-stop operation and recharges conveniently via Type-C.
Does it support reverse rotation?
Yes. One-touch forward/reverse switching with indicator lights (blue = forward, red = reverse) is especially useful for loosening stripped screws.
Which grinding heads are included?
Five standard heads: 0.8A (pad drilling), 4.0K (shield cutting), 2.5A (edge trimming), 2.0D (hole drilling), and 1.5K (stripped screw fix).
Do you offer wholesale pricing?
Yes. Vexagoo is an authorized distributor of QianLi and YCS repair tools, offering factory-direct wholesale pricing with no strict MOQ. Contact us on WhatsApp.
